Understanding the Coordinate Plane for 5th Grade: x-axis, y-axis, Origin

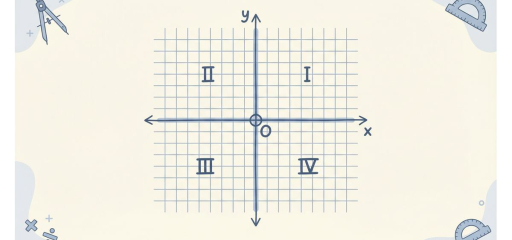

The coordinate plane (also called the Cartesian plane) is a flat surface with two perpendicular number lines—the x-axis (horizontal) and the y-axis (vertical)—that intersect at the origin (0, 0). In Grade 5, students learn to identify the axes, the origin, and the four quadrants, and to locate points using ordered pairs (x, y). The coordinate plane is used for graphing data, mapping locations, and visualizing relationships between two quantities.

An ordered pair (x, y) gives the coordinates of a point: x is the horizontal distance from the origin (positive to the right, negative to the left), and y is the vertical distance (positive up, negative down). To plot (3, 4), start at the origin, move 3 units right, then 4 units up.

DETAILED EXPLANATION

Key terms:

• Origin: (0, 0), where the axes intersect.

The Absolute Best Book to Ace Grade 5 Math

The Ultimate Elementary School Math Bundle Grade 3-5

Download

$109.99 Original price was: $109.99.$54.99Current price is: $54.99.

• x-axis: Horizontal number line; positive to the right.

• y-axis: Vertical number line; positive upward.

• Ordered pair (x, y): x = horizontal coordinate, y = vertical coordinate.

• Quadrant I: x > 0, y > 0 (upper right).

• Quadrant II: x < 0, y > 0 (upper left).

• Quadrant III: x < 0, y < 0 (lower left).

The Ultimate Middle School Math Bundle: Grades 6–8

• Quadrant IV: x > 0, y < 0 (lower right).

To plot (a, b): From the origin, move a units horizontally (right if a > 0, left if a < 0), then b units vertically (up if b > 0, down if b < 0).

WORKED EXAMPLES WITH STEP BY STEP SOLUTIONS

Example 1

On a coordinate plane, what are the coordinates of the point 3 units right and 4 units up from the origin?

Solutions:

Step 1: Right = positive x direction. Up = positive y direction.

Step 2: 3 units right → x = 3. 4 units up → y = 4.

Step 3: The ordered pair is (3, 4).

Answer: (3, 4)

Mastering Grade 5 Math

Mastering Grade 5 Math The Ultimate Step by Step Guide to Acing 5th Grade Math

Download

$29.99 Original price was: $29.99.$16.99Current price is: $16.99.

Example 2

Plot the point (2, 5). Which axis is crossed first when moving from the origin?

Solutions:

Step 1: For (2, 5), x = 2 and y = 5.

Step 2: From the origin, we move 2 units in the x-direction (horizontal) first, then 5 units in the y-direction (vertical).

Step 3: The x-axis (horizontal direction) is used first.

Answer: The x-axis (horizontal direction) is used first.

Example 3

What are the coordinates of the origin?

Solutions:

Step 1: The origin is where the x-axis and y-axis intersect.

Step 2: At the origin, we have moved 0 units horizontally and 0 units vertically.

Step 3: The coordinates are (0, 0).

Answer: (0, 0)

Example 4

A point is 5 units left and 2 units up from the origin. What are its coordinates?

Solutions:

Step 1: Left = negative x. So x = −5.

Step 2: Up = positive y. So y = 2.

Step 3: The ordered pair is (−5, 2).

Answer: (−5, 2)
