What you will be able to do
read scale, coordinates, legends, and thematic data; combine geographic layers to identify a pattern; evaluate map purpose, date, source, and privacy limits
Maps, Geographic Data, and Geospatial Technology
How do maps, data layers, and geospatial tools help us investigate patterns across places?
Activate what you know
Read the title, legend, compass, and scale on a teacher-provided map. State one claim the map supports and one question it cannot answer
- geographic datainformation connected to locations on Earth
- thematic mapa map designed to show one topic or data pattern
- scalethe relationship between distance on a map and distance on Earth
- coordinatea set of values used to identify a location
- data layerone category of mapped information that can be combined with other layers
- GISa geographic information system used to store, analyze, and display location-based data
- satellite imageryimages of Earth collected by instruments on satellites
- metadatainformation about who created data, when, how, and for what purpose
1
Maps Display Selected Geographic Data
Maps are models made for purposes. A reference map may emphasize roads and places, while a thematic map may show rainfall, population, land use, language, or election results. The legend explains symbols and categories. Scale converts map distance to real distance, and coordinates locate points within a grid or latitude-longitude system. Map data must be read with metadata. Ask who collected it, when, how, at what scale, and what categories were used. A statewide average can hide neighborhood differences. A map from ten years ago may not show current roads. Colors can exaggerate or soften patterns, so read the numerical ranges as well as the visual impression
2
Layer Data Carefully and Protect Location Privacy
Geospatial technology helps researchers compare patterns over space and time. Satellite images can show changes in vegetation or development. GPS can record locations, and GIS can layer those points with land use, elevation, or population data. A visible overlap can suggest a relationship, but it does not prove cause by itself. Location data can reveal sensitive information about homes, travel, sacred sites, endangered species, or vulnerable people. Responsible maps use permission, remove unnecessary personal details, and follow community rules. Indigenous nations may restrict exact locations of cultural places to protect them. Useful mapping balances public questions with privacy, sovereignty, and safety
Map Plus Metadata
Never interpret a data pattern without checking the map’s title, legend, scale, date, source, categories, and collection method
Read One Layer, Then Combine
Describe each layer’s pattern separately before overlaying them. This makes it easier to explain what the combination adds and prevents visual guesswork
A Map Pattern Does Not Prove a Cause
Two features can overlap for several reasons. Use additional evidence before concluding that one produced the other
Plan an Accessible Park Route
Use fictional layers for slope, path surface, entrances, shade, and construction. Select a route, cite map evidence, and state what current field information is still needed
Maps and geospatial tools organize location-based data through scale, coordinates, categories, and layers. Responsible interpretation checks metadata, distinguishes pattern from cause, and protects privacy, safety, and sovereignty
Practice and answer guide
Work through all 10 questions. Open an answer only after you have written or explained your response.
- 1. A map scale says 1 centimeter equals 10 kilometers. Two towns are 4 centimeters apart. What is the map-based distance? A. 40 kilometers B. 14 kilometers C. 4 kilometers
Check answer
40 kilometers
- 2. Which map is thematic? A. a map showing average annual rainfall B. a blank sheet C. an unlabeled photograph
Check answer
A map showing average annual rainfall

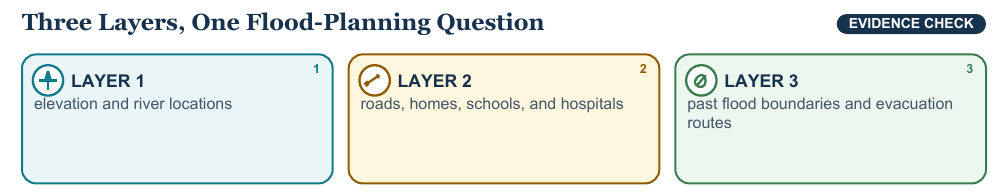

- 3. Draw three transparent data layers for a flood-planning map and label what each contributes
Check answer
Answers vary. Appropriate layers include elevation or river, buildings or population, flood history, roads, shelters, and evacuation routes; each contribution must be explained
- 4. Name five metadata questions to ask before interpreting a map
Check answer
Ask who created it, when, for what purpose, how data were collected, at what scale, what categories or ranges were used, and what was omitted. Any five are acceptable

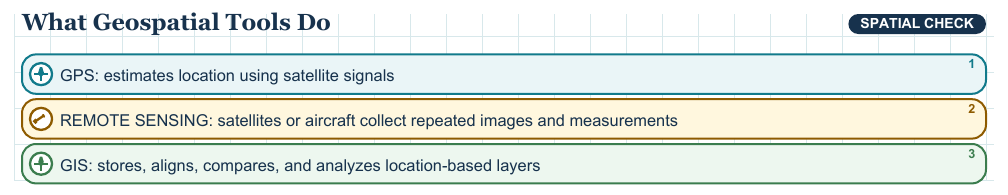

- 5. Explain the difference among GPS, remote sensing, and GIS
Check answer
GPS estimates a location; remote sensing collects images or measurements from a distance; GIS stores, combines, analyzes, and displays geographic layers
- 6. Why can a statewide average hide important local patterns?
Check answer
An average combines different places into one number and may hide extremes, clusters, or unequal conditions within the state
- 7. Which statement is safest? A. The overlap suggests a relationship that needs more evidence. B. The overlap proves one feature caused the other. C. Map colors never affect interpretation
Check answer
The overlap suggests a relationship that needs more evidence
- 8. A grid map places the library at B3 and the clinic at D3. Describe the coordinate change
Check answer
The row remains 3, while the column moves from B to D, two columns across in the grid’s labeled direction
- 9. Why might a tribal nation choose not to publish the exact coordinates of a cultural site?
Check answer
Exact coordinates could expose the site to damage, theft, unwanted visitation, or disrespect and may violate the nation’s sovereignty or cultural protocols
- 10. Evaluate this fictional route map: it uses clear route symbols but gives no date or source. Name one useful feature, two weaknesses, and a next step
Check answer
Useful feature: clear route symbols. Weaknesses: unknown date or currentness and unknown authority. Next step: compare with a current official map and conditions before use
