Topic 06 · Geography & Human Systems

Map Projections, Latitude, Longitude, and Geospatial Data

How do coordinate systems, projections, scale, and data choices shape what a map can show?

Learning goal

What you will be able to do

locate places with latitude and longitude; evaluate projection and scale trade-offs; interpret geospatial layers and metadata responsibly

Before you begin

Activate what you know

Explain why a globe can preserve Earth’s overall shape while a flat world map is easier to print and measure

Words to know

map projectiona method for representing Earth’s curved surface on a flat map
distortionchange in shape, area, distance, or direction caused by representation
latitudeangular distance north or south of the Equator
longitudeangular distance east or west of the prime meridian
coordinatespaired values identifying a location in a reference system
scalerelationship between distance on a map and distance on Earth
GISgeographic information system used to store, analyze, and display spatial data
metadatainformation describing who created data, when, how, and with what limits

Projection and Scale Are Analytical Choices

Earth is roughly spherical, so a flat world map cannot preserve shape, area, distance, and direction everywhere at once. A conformal projection can preserve local angles while greatly enlarging high-latitude regions. An equal-area projection preserves relative area but alters some shapes. A mapmaker should name the intended task instead of asking which projection is universally best. Scale changes the patterns a reader can see. A large-scale neighborhood map covers a small area with fine detail; a small-scale world map covers a large area with less detail. Symbols, boundaries, and categories are also selections. A blank-looking region may reflect missing data rather than an absence of people or activity. Titles, legends, dates, and sources help readers distinguish evidence from design

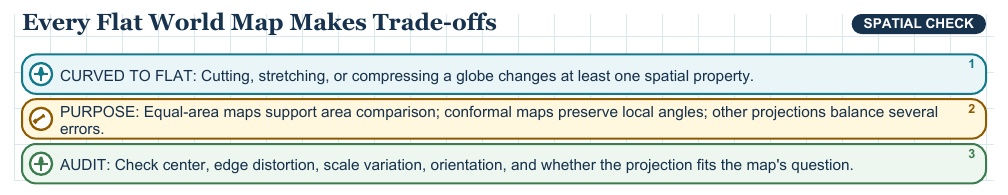

Teaching visual 1 for Map Projections, Latitude, Longitude, and Geospatial Data — **Read the visual.** No projection is simply the accurate world map. Accuracy is always tied to a property and purpose

Geospatial Data Supports—and Limits—Spatial Reasoning

Latitude measures angular position from 0 degrees at the Equator to 90 degrees north or south. Longitude measures from 0 degrees at the prime meridian toward 180 degrees east or west. A pair such as 30° N, 90° W identifies a position, but precision matters: rounded degrees cover a wide area, while decimal coordinates can identify a building or sensitive site. GIS lets researchers compare layers and test relationships, such as whether flood exposure overlaps housing or transportation access. Overlap does not by itself prove cause. Datasets may come from different years, scales, definitions, or sampling methods. Metadata reveals those differences. Ethical mapmaking also protects private residences, sacred places, endangered habitats, and archaeological locations by aggregating, masking, or restricting data when public precision could cause harm

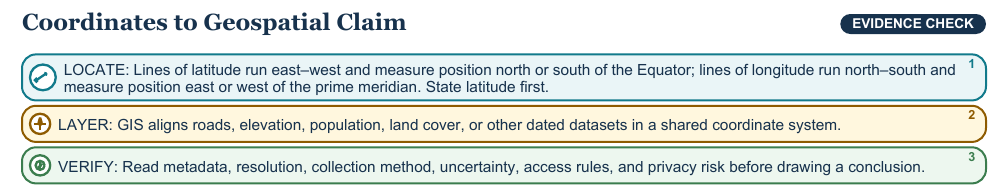

Teaching visual 2 for Map Projections, Latitude, Longitude, and Geospatial Data — **Read the visual.** A precise-looking point or layer is only as trustworthy and appropriate as the data and method behind it

Key point

Ask What the Map Preserves

Evaluate a map by its purpose, projection, scale, data, date, and omissions—not by visual familiarity

Study strategy

Read the Margins First

Before interpreting patterns, identify title, purpose, projection, scale, legend, date, source, and missing-data symbol

Common misconception

Coordinates Are Not Automatically Neutral

Coordinate precision, data collection, labeling, and publication decisions can create error or expose sensitive locations

Try it

Choose a Map for a Decision

Compare three printed projections for a global area question, then inspect a fictional GIS layer’s metadata and write one supported spatial claim plus one limitation

TOPIC SUMMARY

Maps are purposeful models. Projection, scale, coordinates, layers, metadata, and privacy choices determine which spatial claims a representation can responsibly support

Practice and answer guide

Work through all 12 questions. Open an answer only after you have written or explained your response.

1. Which map property must change somewhere when Earth’s curved surface is shown on a flat map? A. at least one of shape, area, distance, or direction B. the existence of the Equator C. the number of continents
Check answer
at least one of shape, area, distance, or direction
2. Why is there no universally best projection?
Check answer
Flattening a curved surface forces trade-offs, and different tasks require preserving different properties
3. Which projection property is most useful for comparing country area?
Check answer
Equal area
4. Distinguish large-scale from small-scale maps
Check answer
A large-scale map shows a smaller place with more detail; a small-scale map shows a larger place with less detail
5. In 30° N, 90° W, which value is latitude?
Check answer
30° N
6. What reference line is 0° latitude?
Check answer
The Equator
7. What reference line is 0° longitude?
Check answer
The prime meridian
8. Why can rounded coordinates describe a broad area rather than one exact spot?
Check answer
Each degree spans substantial ground distance, so greater precision is needed for a smaller location
9. Name three items to inspect in metadata
Check answer
Creator, date, collection method, definitions, resolution, uncertainty, coordinate system, or license; any three
10. Two GIS layers are dated 2005 and 2025. What must be considered before comparing them?
Check answer
The places and definitions must be comparable, and real change must be separated from changed collection methods or boundaries
11. Why does spatial overlap not prove causation?
Check answer
Other variables, selection effects, or coincidence may produce overlap; causal evidence is still required
12. Name one reason to hide or generalize exact coordinates
Check answer
Protecting a residence, sacred site, archaeological location, or endangered species habitat is acceptable
